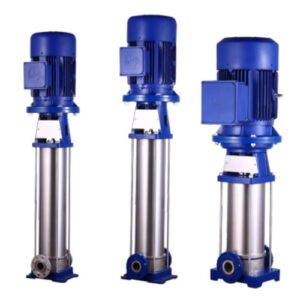

Vertical Multistage High Pressure Pumps
High Pressure Pumps
- Reverse Osmosis System
- Boiler Feed
- Chiller Feed Pump
- Industrial Water Supply
- Pressure Boosting
Features
- Features:
- 100% Made In India
- Shortest delivery time for
- SS 304 / SS 316 / Duplex MOC Pumps
- Built for Durability & Performance
- Available in Single Phase & Three Phase
- Fastest PAN India On-Site Service Support
- Temperature Range: -40 Degree Celsius to 140 Degree Celsius
- Sturdy & Robust Design
- Readily Available Spares & Faster On-Site Repair Service
Why NGET Pumps Are Different & Beneficial?
- Provided shaft diameter 14 MM to improve assembly strength & reduce vibration.
- Shaft in all pumps are provided in SS 316
- 4 groove design in shaft to avoid individual radial movement of impellers, protect shaft from damage & also to avoid pressure drop.
- Shaft bearing is Tungsten Carbide for minimal vibration.
- Wear ring in diffusers to improve the efficiency.
- Casing pipe (Sleeve) thickness 1.5 mm for durability, better pressure resistance & can handle high inlet pressure
- Top & Bottom casing with SS 304/SS 316/Duplex -Keeps Pump corrosion free, Provides longer life
- with better efficiency.
- Split type mechanical seal with Carbon & SiC.
- Repairable mechanical seal which can be reused by replacing the stationery parts, ensures affordable in maintenance cost.
- Single mould Bottom casing in SS with Inlet-outlet.
- Victaulic coupling (standard) / Flange connection option available
- Base plate is separated to reduce damage chances to bottom casing during maintenance.
- C.I. motor mounting Couplings with balancing.
- Tie Rods are provided in SS 304 for longer life & fixed with Special Glue in Base frame to avoid
- loosening during operations.
- 100% Testing with trial run and provided with test data.
Can’t find what you need? Ask us!

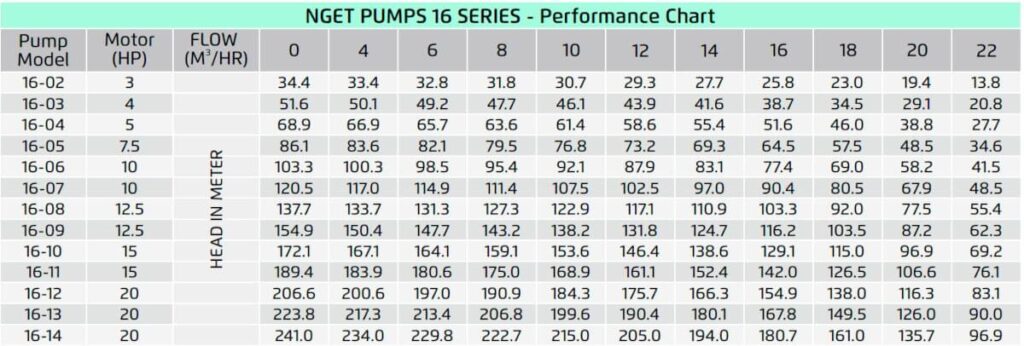

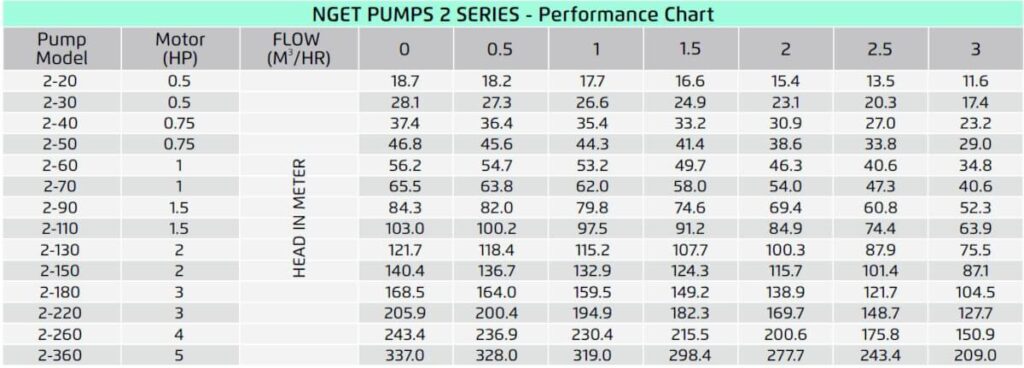

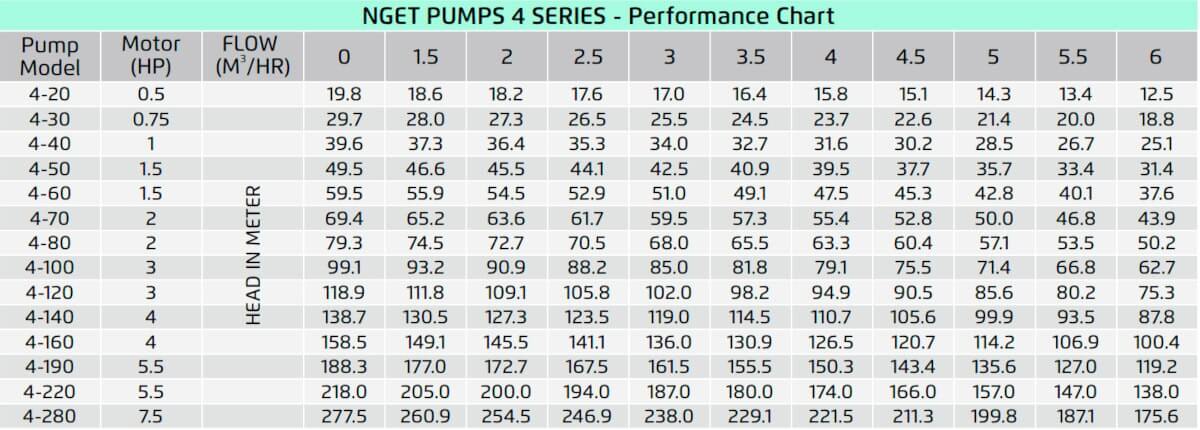

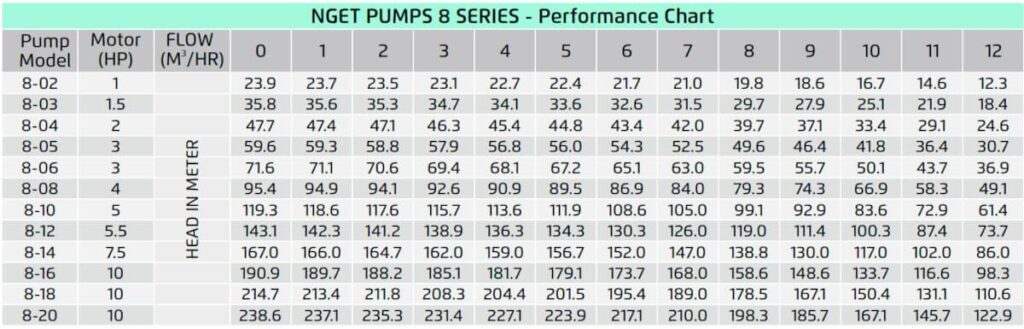

NGET Pumps Performance Chart
