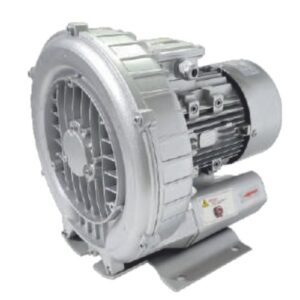

Single Stage Ring Blower

Single Stage Ring Blower

NextGen Envirotech is importer & Trader of Ring blowers under the brand name of NGET for small size ETP & STP Plants, we assure our customer to provide the best quality with best in class after sales service. We have taken special care in selection of Ring blowers, that we can serve the industry with the best product. Ring Blower is known by various names in the market like Ring Blower, Regenerative Blower, Turbine Blower, Vortex Blower, Ring blower,  Side Channel Blower, Vacuum Blower etc.

  • Book Your Appointment with Ring Blower Expert Today!
  • India’s Leading Ring Blower Supplier Since Many Years
  • Stable airflow and low noise with excellent quality
  • Outstanding performance highly efficient service.

Principal of operation

This turbine blower is a non-positive displacement, high, volume, pressure, blower that can operate as either a compressor or a vacuum pump.  It is also known as other names such as regenerative blower, vortex blower and side channel blower.  All of the names describe the basic principle of operation of the blower.

The blower consists of an impeller mounted directly on a motor shaft and is rotated at a high speed of about 2900 R.P.M.  on the periphery of the impeller are a large number of radial blades.  The impeller is positioned between 2 and plates with the blades located with a channel on either side.

The turbine blower is ineffective, a multi stage compressor with each regeneration of the air becoming another “stage”.

The basic construction of a turbine blower means that the only moving part is the impeller.  Nothing touching except bearings.  The method of compression means that there is no requirement for lubrication in the compression chamber.  The discharge air is oil-less, no oil aerosols are present in the discharge air, nor carbon dust generated by sliding wanes.  The blowers should be mounted vertically or horizontally.

Construction

Turbine blower is designed to meet the most critical application requirements.  Each features an impeller, mounting base and housing manufactured of aluminium for maximum strength, reduced weight an increased corrosion resistance.  The blower is constructed as a unit for mechanical simplicity and maximum structural integrity.  The elimination of clutches, gears, belts and sliding vanes reduced periodic maintenance requirements while increasing reliability.  All blower’s impellers are dynamically balanced to virtual eliminate vibration while increasing overall long-term reliability.  All the models have a shaft oil-seal between the impellers and bearing as well as double shield bearing to reduce the possibility of foreign material in influx and preclude air contamination.

Application

Side channel Blowers offer a wide field of application facilities wherever the use of air as energy supply leads to optimum results.  The fields of application listed below present just a small summary therefore of the wide range of possible uses of these units.

Air Pollution Monitoring Equipment’s, Hopper Loader, Vacuum Lifting, Gas Transferring, Electroplating Plant, Effluents Treatment Plant, Waste Water Treatment Plants, Manufacturing of Textiles, Medical Laboratory and Measuring Equipment’s, Printing and Paper Handling, Vacuum Packaging, Reprographics Industry, Aeration of Fluids, Pneumatic Conveying, Plastic Industry, Industrial Ovens, Vacuum Cleaners,

Pneumatic Air Tube Systems, Vacuum Transport Systems, Air-Cushion Tables, Agriculture Machines, Pneumatic Conveying Systems, Bottle Filling station, Drying Systems, Dental Equipment, Aquarium Aeration, Vacuum Cleaning Systems, Printing Machines, Welding Fume Extraction, Water treatment, Aeration of Galvanic Tanks, Vacuum Lifting Gear, Screen Printing Machines, Textile Machinery, Fish Pond Aeration

Advantages

  • Easy Installation
  • Structure of the solid
  • Low vibration
  • Low Noise
  • The protection class is IP54 and Insulation class is F

Functional Performance

  • Voltage: 380 ~ 415
  • Phase: 3
  • RPM: 2880
  • Frequency: 50 Hz ± 5%

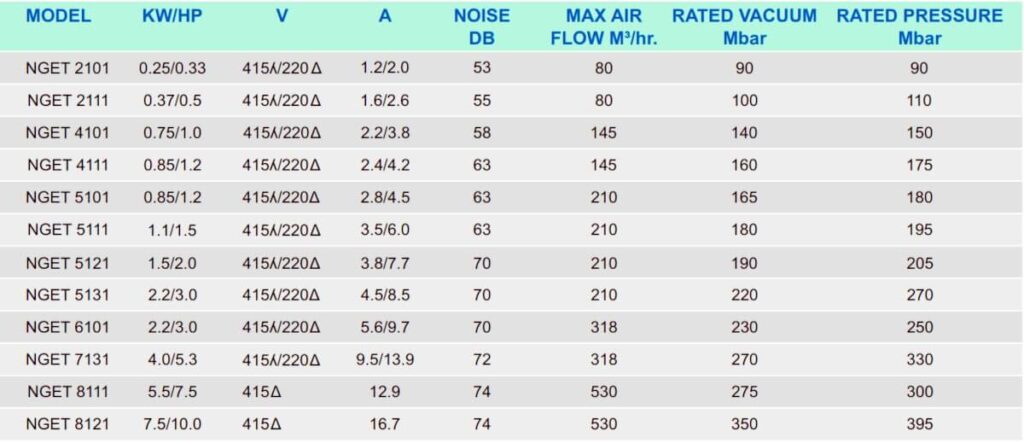

Technical Parameters for Three Phase

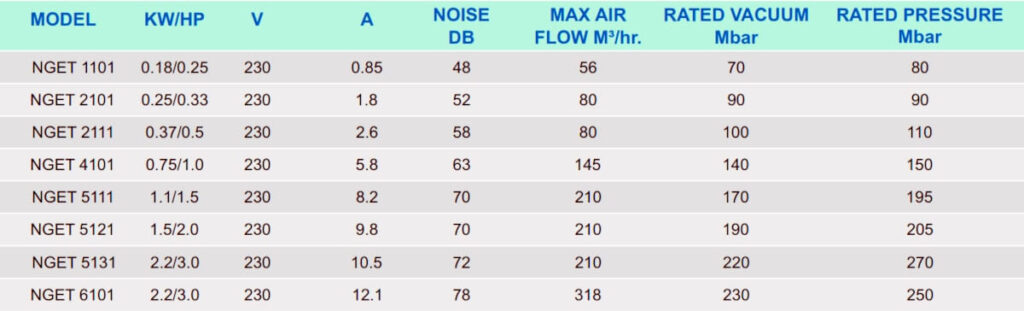

Technical Parameters for Single Phase
