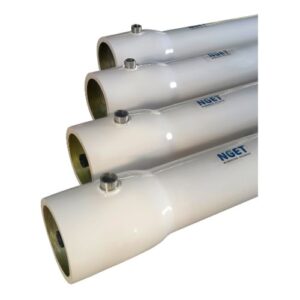

FRP Membrane Housing

NGET make FRP Pressure Tubes are 100% Made in India with highest quality raw material and highest grade of MOC to meet the tough operational requirement in water & waste water treatment industry. NGET range of Pressure tubes comes with fastest in industry after sales service support with shortest delivery time. We are committed with the best in class after sales service support to reduce the break-down time and production loss of End User.

Features

100% ASME Compliant range of FRP Pressure tubes.
Mirror ﬁnished ID surface for smoother loading and unloading of membranes.
Provided both side Hexagon shape in 8” Side port Pressure tubes to prevent membrane from accidental damage during loading / Unloading
8” – 300 psi end cap is made of Noryl in Elliptical shaped head.
Circlip type head retention system for quick & tools free access to membranes.
Exteriors painted with high gloss polyurethane paint for UV resistance.
Operating Temp Range: -10°C to 49°C.
100% Pressure Tubes are Hydro tested at 1.5x of Design Pressure.
Operating pH Range: 3 to 11
Cleaning pH Range: 2 to 12 (for 30 minutes cycle)

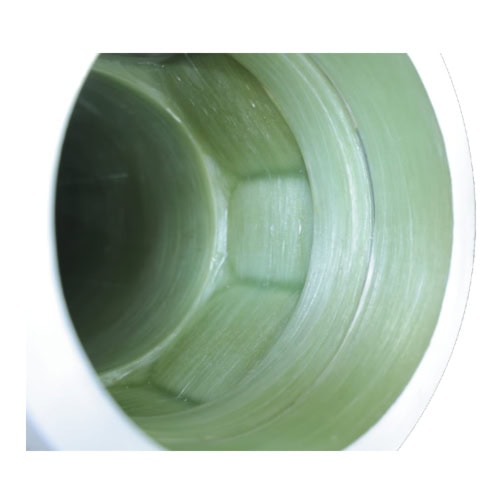

Hexagon Shape to Prevent Membrane from Accidental Damage

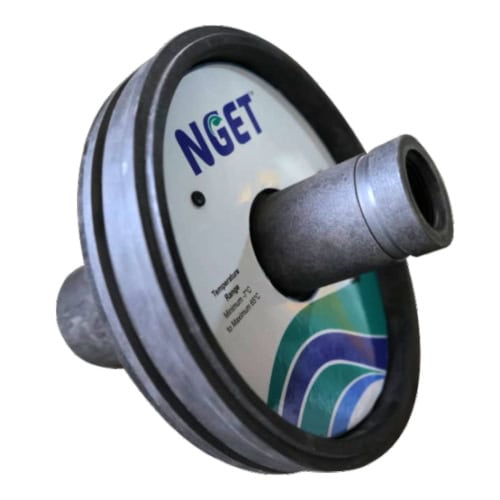

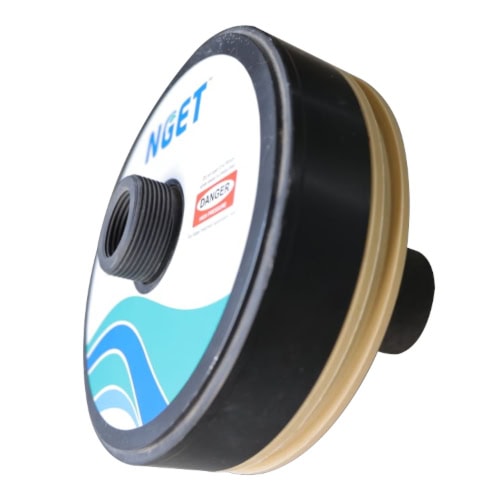

Elliptical Shaped Head with Noryl MOC for 300 PSI Pressure Tubes

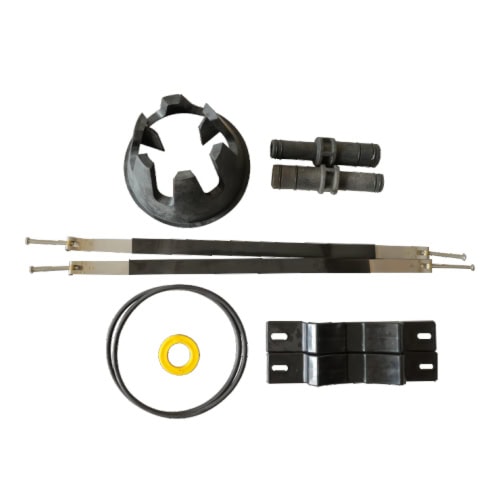

Highest Quality Accessories to Meet the Performance and Durability

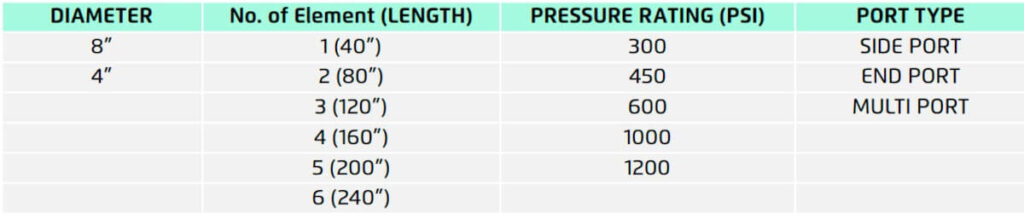

* Pressure tube model can be selected from options provided in above table

* 4” Pressure tubes are available in end port conﬁguration only with upto 1000 psi and upto 4 element

Can’t find what you need? Ask us!

FRP High Pressure Tube

4” End Port – 3/4” Victaulic Connection & Permeate Port 1/2” Threaded Connection
8” End Port – 1.5” Victaulic Connection & Permeate Port 1” Threaded Connection
8” Side Port – 1.5” Victaulic Connection & Permeate Port 1” Threaded Connection
