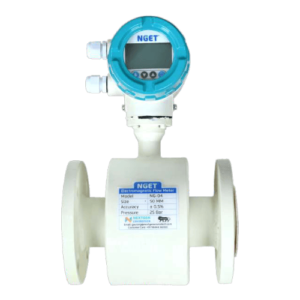

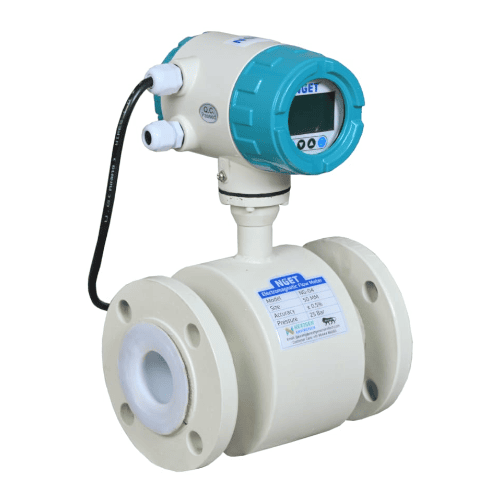

Electromagnetic Flow Meter

Best Suited for Conductive Liquids, Acids, Alkalies, Water, Pulps, and Slurries

The NGET’s Electromagnetic Flow Meter is a highly advanced and dependable instrument, specifically designed to accurately measure flow rates in conductive liquids, acids, alkalies, water, pulps, and slurries. For various industrial applications, the flow meter provides a maintenance-free solution with an unparalleled blend of performance, flexibility, and cost-effectiveness.

Its non-intrusive design makes it perfect for applications where contamination is a problem because it doesn’t require any contact with the fluid. It also has a high degree of accuracy, typically within 0.5% of full scale.

Features

High precision: Often within 0.5% of the reading.
Broad Measuring Range: With a measuring range of 0.2 m3/h to 1300 m3/h, this device is suitable
for a wide range of applications.
No moving parts: Non-invasive measurement techniques guarantee excellent dependability.
Universal Power Supply: 85 V AC-270 V AC, 50 Hz- 60 Hz/ 24 V DC.
Bidirectional measurements: Measurements that can be made in both directions-forward and
backward.
Designed for tough settings and highly corrosive or abrasive liquids, this material is resistant to
wear and tear.
Unaffected by fluid characteristics: The flow meter’s measurement accuracy is unaffected by
variations in the temperature, pressure, density, or viscosity of the fluid.
Flameproof (IS/IEC 60079-1:2007)/Weatherproof/ Can function in Potentially Explosive Atmosphere (IS/IEC 60079-0: 2004)
Empty pipe alert

Benefits

No Pressure Drop: Electromagnetic flow meters use less energy since they don’t cause a pressure drop, in contrast to conventional flow meters.
Low total cost of ownership due to low maintenance requirements and lengthy operational life.
Versatility: Due to its great flexibility and broad measuring range, it is appropriate for a diverse variety of applications like acidic chemicals, corrosive liquids, wastewater, cold/warm/hot water; and industries like food processing, pharmaceuticals, power generation industries, textile industries, pulp and paper industries, etc.
Eliminates the risk of contamination.
Outstanding value relative to performance

Can’t find what you need? Ask us!

Technical Specifications

Specifications

Measurement Principle: Electromagnetic
Line Size Options: 15 NB to 350 NB (1⁄2 inches to 14 inches)
Types Available: Integral/ Remote (Up to 10 m Cable Length)
Flow Measuring Range: 3/h 3/h 0.2 m to 1300 m
Measured Variables: Volume flow, mass flow
Accuracy (or Max. Measurement error): 0.5% of F. S. (or ±0.5%)
Repeatability: ±0.1%
Protection Class: Flow Sensor Unit: IP66/ IP67/ IP68, Transmitter/ Display Unit: IP65/ IP66
Liner: PTFE (Teflon)
Process Connection: Flange End
Flange Material: MS / CS / SS304 / SS316
Flange Class: #150
Coil Housing Material: MS / CS / SS304 / SS316
Flow Tube: SS304/ SS316
Electrode Material: SS316L/ Hastelloy C22
Media: Conductive Liquid Flow Direction:
Flow Direction: Forward & Reverse (Reverse flow indicated with (-) sign before flow rate)
Electrical Conductivity of Liquid: >5 μS/cm
Process Pressure: 2 20 bar or 20 kg/cm
Operating Temperature Range (Medium Temperature Range): -10 (0) °C to +100 °C, -10 (0) °C to +200 °C (Remote display), PTFE: up to 230 °C
Ambient Temperature Range: -25 °C to +60 °C
Relative Humidity: 0-95%

Certifications and Warranty

Meteorological Approvals and Certificates: Calibration performed on accredited calibration facilities (acc. To ISO/IEC 17025) (NABL Calibration) (provided at extra cost)
Other Approvals: CE, ISO 4064:2014
Warranty: 1 Year
All specs as mentioned above for Non-Telemetry, +
Communication Types: GPRS / GSM or LAN Gateway
Telemetry System: Inbuilt – GPRS / GSM, External – GPRS / GSM or LAN Gateway

Display Unit

Display: Standard 16*2 LCD
Display Resolution/ Smallest Division: 3/h Flow-rate Totalizer: 9 digits Totalizer

Transmitter Unit

Power Supply: 85 V AC-270 V AC, 50 Hz-60 Hz/ 24 V DC

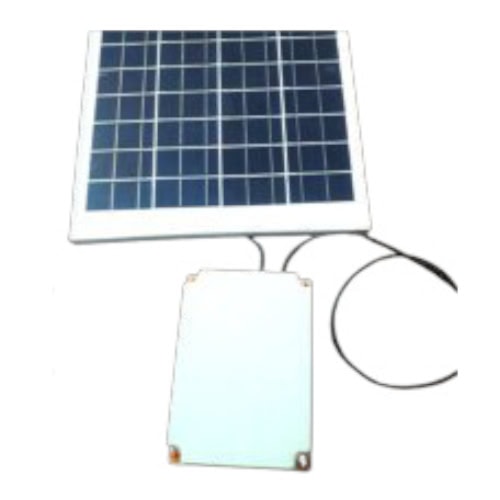

Optional power supply: 1) Solar powered with 30 hours uninterrupted operation through 24 V rechargeable battery pack, in absence of sunlight, 2) 3.7 V Rechargeable Li-ion Battery operated
Output: 4-20 mA/ RS485/ Pulse (All three outputs available for non-telemetry flow-meter) (In Inbuilt Telemetry-None available externally as Gateway by- default uses RS-485 In External Telemetry- Gateway connects with RS-485 and 4-20 mA/ Pulse outputs remain available)
Power Consumption: <10 VA
Isolation: 1.4 kV between Input, Output & Power Supply
Alarm Output: Low & High Flow Alarm (Open Drain)
Transmitter Housing Material: Die-cast Aluminum

Configuration functions/parameters

Configuration Data: 3 Tactile Membrane Keys for Data Configuration
Flow Totalizer Reset: Totalizer Reset Facility by Password Protection
Units of Measurement: 3, kg, kL (User Configurable) L, m
Low Flow Cut-Off: User Configurable- 0 to 10%
Damping Time: User Configurable
Security: Password Protection for Configuration of Data

Special Function (As Optional Accessories)

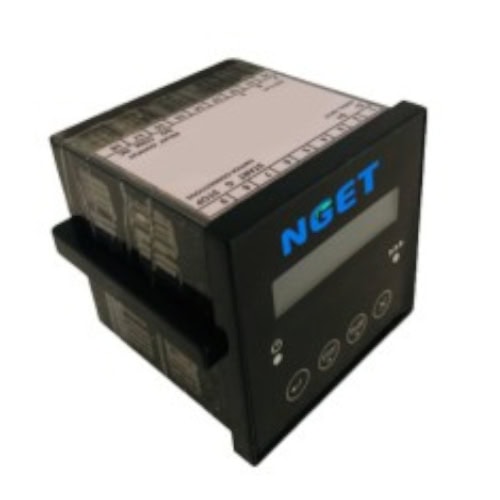

Batching Facility: Available
Data Logging: Available
Telemetry: Available

Cloud Application

Dashboard: Compatible on PC/ Mobile Phone/ iPad
Reports: Real-Time Data Access
Multi-User Login: Yes
Group Allocation: Yes
Alerts: Temper Alert and Power Failure Alert
Subscription: Yearly via Payment Gateways

Can’t find what you need? Ask us!

Application Areas

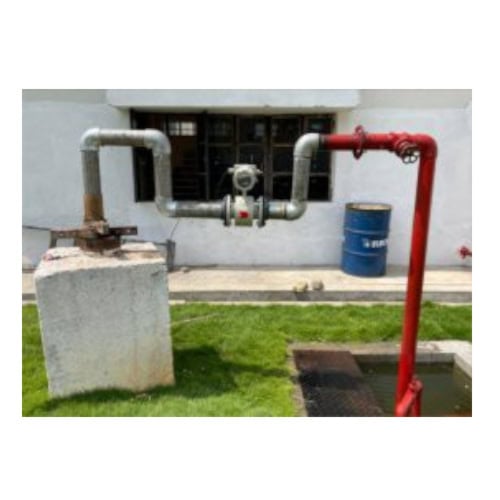

Water & Wastewater Treatment

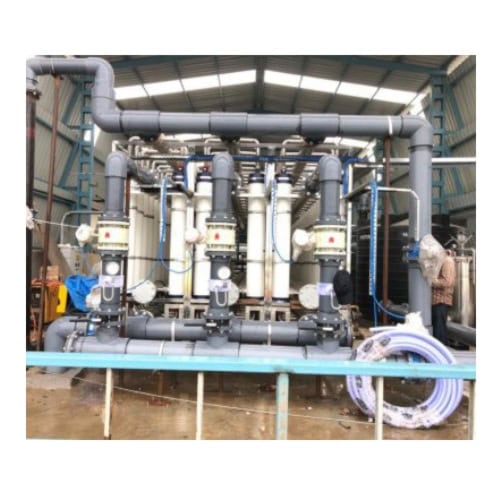

Food & Beverage Industry
Chemical & Pharmaceutical Industries
Paper & Pulp Industry
Mining & Metallurgical Industries
Oil and gas
Power generation (Cooling stations)

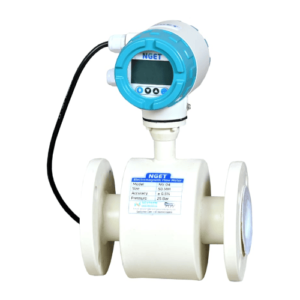

Effluent Treatment Plants
Textile Industry
Ceramic Industry
Marine Industry
Nuclear Industry (Cooling stations)
Sustainable Energies Industry

Options and Customization

Lining Material: Options for various lining materials are available to meet a range of application requirements(e.g., PTFE, hard rubber, polyurethane).
Process Connection: Numerous flange choices are available for various process connections/ Multiple electrode materials are available to suit different process fluids.

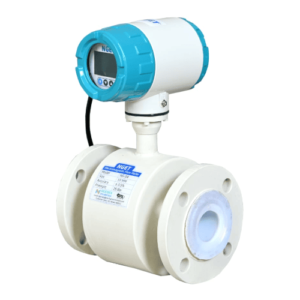

Display Options: Local/Integral or remote displays are offered depending on the installation requirements.
Output Options: Multiple output options are available, including 4-20 mA, pulse, and RS485.

Within Telemetry a. Inbuilt Telemetry

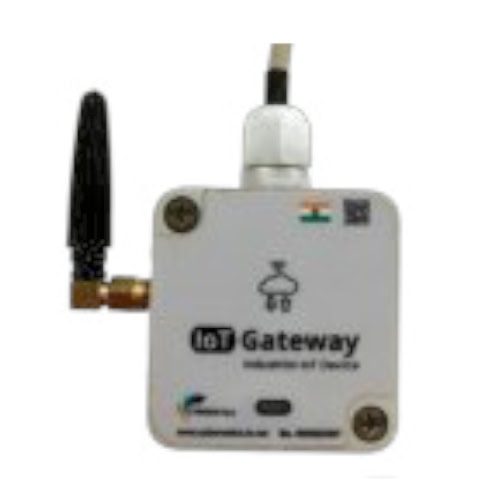

b. External Telemetry b.1. GSM Gateway

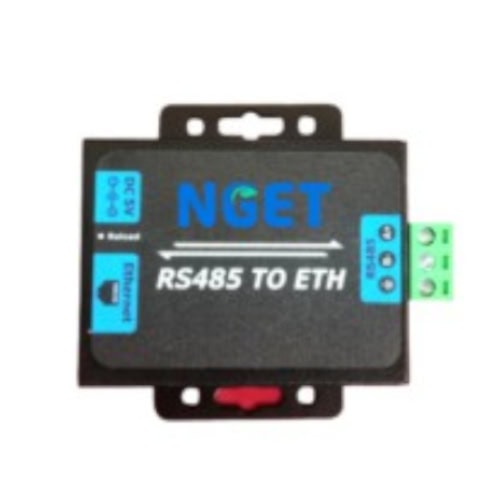

b.2. LAN Gateway

Installation Instructions

The application and the customer’s requirements will determine the precise installation procedure.
Orientation: The flow-meter can be put in any direction, although for optimal results, horizontal installation is advised. U-bend is ideal for these flow-meters. Refer to the installation manual for details.
Pipe Conditions: For precise measurements, make sure the pipe is continually filled with liquid.
These meters are also susceptible to damage from lightning strikes if installed outside without canopy.

Upkeep and Calibration

Maintenance: Because there aren’t any moving parts, little maintenance is needed. The only maintenance typically required is cleaning the electrodes and sensor. Nonetheless, it is advised to perform regular check-ups on the electronic components. However, deposits developing on the electrodes, air in the liquid, turbulence, and to some extent water pounding can all influence the accuracy of electromagnetic meters (Pressure transients).
Calibration: Regular calibration guarantees the best results. To find out the recommended calibration intervals, contact the manufacturer.

Ordering Details

Product Code: Use this special product code to order this model.

Identifying the data plate (Selecting the model): EFM-A-B-C-D-E-F-G-H-I-J-K

A: Line Size (NB)
B: Lining Material (PTFE, Rubber)
C: Electrode Material (SS316L, Hastelloy ‘C’)
D: Flange and Coil Housing (MS, SS)
E: Class of Flange (Class 150, 300, 600)
F: Special Paint (No (Siemens Grey), Mention Color)
G: Output 4-20 mA (No: 0, Yes: 1)
H: Output RS485 (MODBUS) (No: 0, Yes: 1)
I: Display (Integrated: I, Remote: R)
J: Pulse Output (No: 0, Yes: 1) (Pulse 0 for Telemetry)
K: Supply Voltage (220V AC, 110V AC, 24V DC)
E.g.: EFM-50-PTFE- SS316L-MS-150-NO-1-1-I-0-220V

Included Accessories: Mounting brackets and power cords.

Optional Accessories: Available upgrades or extra features that can be purchased separately are considered optional accessories.
