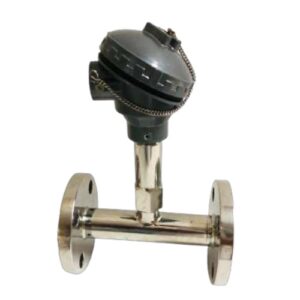

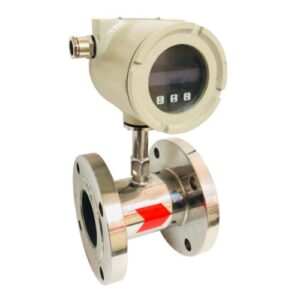

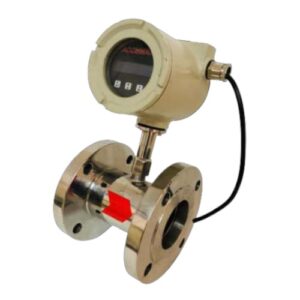

Digital Turbine Flow Meter

Digital Turbine Flow Meter

  • Wide range of application
  • High Accuracy in Low cost
  • Robust Design & Available in two enclosure design.
  • Easy Installation
  • Line Size from 15 NB
  • Modes:
    • Indicator & Totalizer
    • Batcher
    • Flow Comparator
    • Rate Switch Mode
    • Pulsar
    • Dual Totalizer
  • 4-20 mA output
  • RS485 Modbusoutput
  • GSM Interface compatible*

Various Modes with Function

  • Totalizer: To Monitor current flow and Totalized
  • Batcher: To make batch of liquid
  • Flow Comparator: To monitor two flow sensor (Inlet Vs. Outlet) and Alarm on reducing rate of recovery
  • Rate Switch: To monitor current flow and Alarm on crossing preset threshold level.
  • Pulsar: To operate specific task on completion of prefix volume. E.g. Dosing application.
  • Dual Totalizer: It’s a 2nd totalizer. It can be used regardless of totalizer1 settings.

Flow Range in m3/H

  • Pipe Size (NB): 15, 20, 25, 40, 50, 65, 80, 100
  • Min. Flow: 0.2, 0.5, 0.8, 1.9, 3.5, 5.8, 7.5, 14
  • Max. Flow 2, 5, 8, 19, 35, 58, 75, 140

Specification

  • Indication: Flow rate, Totalizer
  • Size: 15 To 100 NB
  • Media: Liquid
  • Service: RO Water, DM Water,Oil, Solvents, Diesel, Chemical, etc.
  • Output: 4-20mA and RS485
  • MOC: SS 304 / SS 316 – As per application
  • Rotor: SS 410
  • Display: Standard 2 line LCD (16*2)
  • Type: Integral / Remote
  • Accuracy: + 1% FS
  • Temperature: Up to 90 C
  • Pressure: Up to 30 kg/cm2
  • Connection: Flange / TC / SMS Union / BSP Thread end available
  • Density of liquid: 700 – 1300 kg/m3
